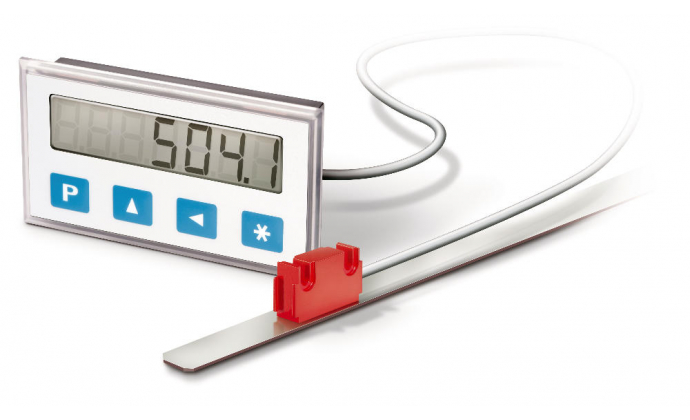

Measurement display MA504/1

Measurement display MA504/1

PRODUCENT CODE: -
CATEGORY: Measurement Displays for Linear Encoders | MagLine
Producer: SIKO GmbH
The product is in categories:
The product is available on request
At the moment, the product is not available in our warehouse.
After placing the order, we will notify you of the expected delivery date of the product.
Fast shipping
Free delivery
from 1000 PLN (net)
Do you have questions about the product?
Ask an experienced consultant:
+48 694 467 159
rw@newtech.com.pl
Description
  • Display accuracy max. 10 μm
  • Repeat accuracy max. ±0.01 mm
  • Lowest-power LCD
  • Metric or decimal-inch indication
  • Incremental measurement and reset function
  • Direct reference/offset value input
  • Battery-buffered memory
  • Battery operation
  • MS500H sensor pluggable
Technical data
Mechanical data
Housing design built-in housing, plastic (Control panel excerpt 67+3 x 33.5+0.3)
Electrical data
Operating voltage 3 V DC
Current consumption ~150 µA at 3 V DC
Display/display range Low-power LCD, ~11 mm high (decimal until 10 µm)
-999999 … 999999
Battery monitoring ~2.4 V DC (low-batt symbol)
Type of connection integrated battery compartment (supply)
System data
Resolution 0.01, 0.05, 0.1, 1 mm (programmable angle display)
0.001, 0.01 in
System accuracy ±(0.1 + 0.01 x L) mm, L in m at TU = 20° C
±(0.05 + 0.01 x L) mm, L in m at TU = 20° C (optional)
Repeat accuracy ±0.01 mm (±1 digit)
Travel speed ≤5 m/s
Ambient conditions
Ambient temperature … 60 °C
Storage temperature -10 … 70 °C
Relative humidity ≤95 % (condensation inadmissible)
EMC EN 61000-6-2 (interference resistance / immission)
EN 61000-6-4 (emitted interference / emission)
Protection category IP40 whole device (EN 60529)
IP54 at the front (EN 60529)
