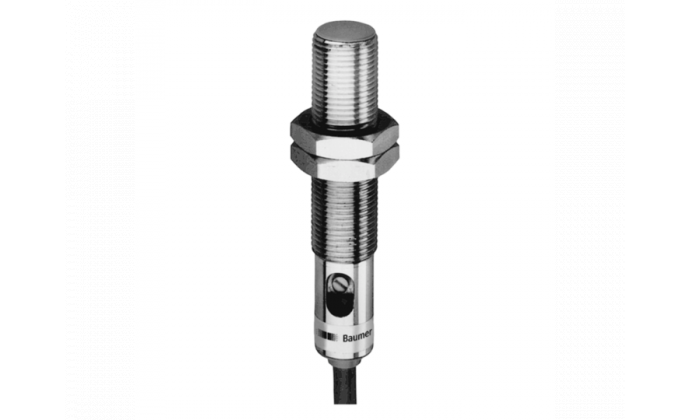

CFAM 12P1600 - Capacitive proximity sensors
PRODUCENT CODE: 10236343
CATEGORY: Sensors in a metal housing
Producer: Baumer
1023.71 PLN
(net)
7-14 days
The product is available on request
At the moment, the product is not available in our warehouse.
After placing the order, we will notify you of the expected delivery date of the product.
At the moment, the product is not available in our warehouse.
After placing the order, we will notify you of the expected delivery date of the product.
Fast shipping
Free delivery
from 1000 PLN (net)
Free delivery
from 1000 PLN (net)
Do you have questions about the product?
Ask an experienced consultant:
Ask an experienced consultant:
Description
Capacitive proximity sensors
- 4 mm
- PNP make function (NO)
- potentiometer, 240°
- cable, 2 m
- -25 … 75 °C
- IP 65
Technical data
| General data | |
| Nominal sensing distance Sn | 4 mm |
| Nominal sensing distance Sn adjustable | 0.5 … 4 mm |
| Mounting type | Flush |
| GND electrode | Yes |
| Temperature drift | ± 15 % (+10 ... +70 °C) |
| Sensitivity adjustment | Potentiometer, 240° |
| Output indicator | LED yellow |
| Measurement type | Contactless |
| Field of application | |
| Detection of non-conductive media | Yes |
| Fill level detection through container | Yes |
| Liquids in direct contact | No |
| Object detection / bulk goods | Yes |
| Electrical data | |
| Voltage supply range +Vs | 10 … 30 VDC |
| Current consumption max. (no load) | 20 mA |
| Output circuit | PNP make function (NO) |
| Output current | < 200 mA |
| Voltage drop Vd | < 1.5 VDC |
| Switching frequency | 50 Hz |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Mechanical data | |
| Type | Cylindrical threaded |
| Housing material | Brass nickel plated |
| Dimension | 12 mm |
| Housing length | 60 mm |
| Connection types | Cable, L=2 m |
| Ambient conditions | |
| Operating temperature | -25 … +75 °C |
| Protection class | IP 65 |
(
