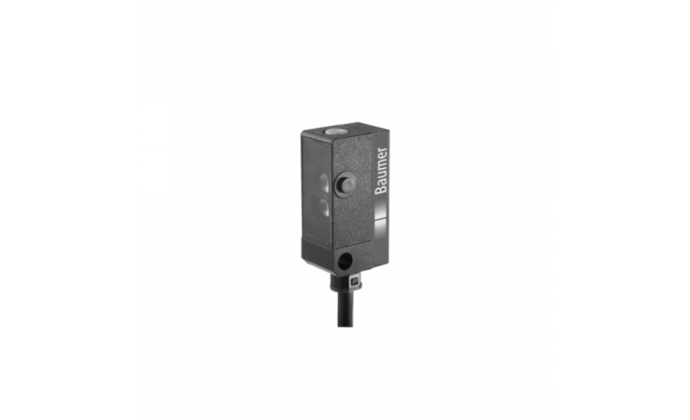

FEDK 10N5101 - Through beam sensors
PRODUCENT CODE: 10139968
CATEGORY: Object/detection - Standard sensors
Producer: Baumer
The product is in categories:
821.78 PLN
(net)
7-14 days
The product is available on request
At the moment, the product is not available in our warehouse.
After placing the order, we will notify you of the expected delivery date of the product.
At the moment, the product is not available in our warehouse.
After placing the order, we will notify you of the expected delivery date of the product.
Fast shipping
Free delivery
from 1000 PLN (net)
Free delivery
from 1000 PLN (net)
Do you have questions about the product?
Ask an experienced consultant:
Ask an experienced consultant:
Description
Through beam sensors - miniature
- receiver
- through beam sensor
- 5 m
- NPN
- potentiometer, 270°
- cable 4 pin, 2 m
- -25 … 65 °C
- IP 65
Technical data
| General data | |
| Type | Through beam sensor |
| Emitter / receiver | Receiver |
| Actual range Sb | 5 m |
| Nominal range Sn | 6 m |
| Alignment / soiled lens indicator | Flashing light indicator |
| Light indicator | LED yellow |
| Sensitivity adjustment | Potentiometer, 270° |
| Electrical data | |
| Response time / release time | < 1,4 ms |
| Voltage supply range +Vs | 10 … 30 VDC |
| Current consumption max. (no load) | 16 mA |
| Current consumption typ. | 16 mA |
| Voltage drop Vd | < 1,8 VDC |
| Output function | Light / dark operate |
| Output circuit | NPN |
| Output current | < 100 mA |
| Short circuit protection | Yes |
| Reverse polarity protection | Yes |
| Mechanical data | |
| Width / diameter | 10,4 mm |
| Height / length | 27 mm |
| Depth | 14 mm |
| Type | Rectangular |
| Housing material | Plastic (ASA) |
| Front (optics) | PMMA |
| Connection types | Cable 4 pin, 2 m |
| Ambient conditions | |
| Operating temperature | -25 … +65 °C |
| Protection class | IP 65 |
(
