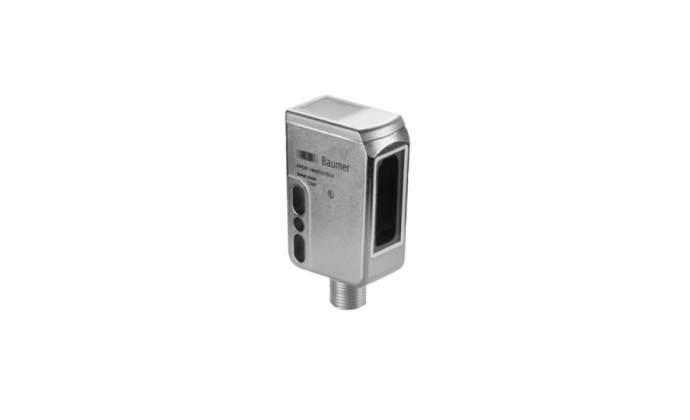

FKDR 14G6901/S14 - Diffuse contrast sensors

FKDR 14G6901/S14 - Diffuse contrast sensors

PRODUCENT CODE: 11096634
CATEGORY: Object/detection - Standard sensors
Producer: Baumer
The product is in categories:
7-14 days
The product is available on request
At the moment, the product is not available in our warehouse.
After placing the order, we will notify you of the expected delivery date of the product.
Fast shipping
Free delivery
from 1000 PLN (net)
Do you have questions about the product?
Ask an experienced consultant:
+48 32 237 61 98 w. 112
wn@newtech.com.pl
+48 32 237 61 98 w. 117
rw@newtech.com.pl
Description
Diffuse contrast sensors - washdown
  • diffuse contrast sensor
  • 12,5 mm ±2 mm
  • white LED
  • push-pull
  • Teach-in
  • connector M12
  • -25 … 60 °C
  • IP 68/69K & proTect+
Technical data
General data
Type Diffuse contrast sensor
Special type Washdown design
Light source White LED
Sensing distance Tw 12,5 mm ±2 mm
Light indicator LED green
Output indicator LED yellow
Sensitivity adjustment Teach-in
Distance to focus 12,5 mm
Beam height 3 mm
Beam width 1 mm
Approvals/certificates Ecolab
Electrical data
Response time / release time < 0,05 ms
Voltage supply range +Vs 18 … 30 VDC
Current consumption max. (no load) 50 mA
Current consumption typ. 40 mA
Voltage drop Vd < 3 VDC
Output function Light / dark operate
Output circuit Push-pull
Output current < 100 mA
Short circuit protection Yes
Reverse polarity protection Yes
Mechanical data
Width / diameter 19,6 mm
Height / length 51 mm
Depth 34,3 mm
Type Rectangular
Housing material Stainless steel 1.4404 (V4A)
Front (optics) PMMA
Connection types Connector M12
Ambient conditions
Protection class IP 68/69K & proTect+
Operating temperature -25 … +60 °C
