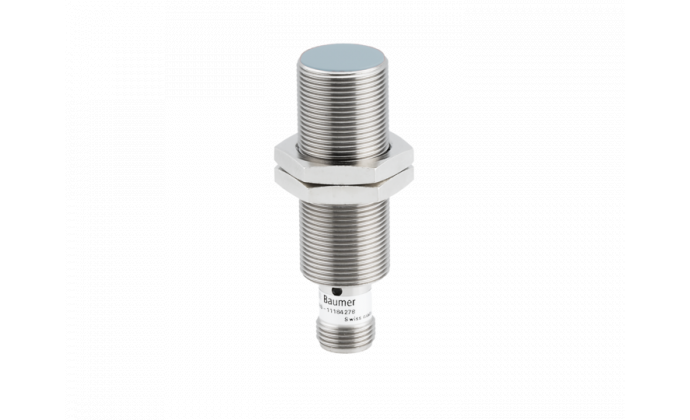

IR18.D05S-F60.UA1Z.7BO/B007 - Inductive distance sensors

IR18.D05S-F60.UA1Z.7BO/B007 - Inductive distance sensors

PRODUCENT CODE: 11140166
CATEGORY: Inductive distance sensors - Standard sensors
Producer: Baumer
892.22 PLN
(net)
7-14 days
The product is available on request
At the moment, the product is not available in our warehouse.
After placing the order, we will notify you of the expected delivery date of the product.
Fast shipping
Free delivery
from 1000 PLN (net)
Do you have questions about the product?
Ask an experienced consultant:
+48 32 237 61 98 w. 112
wn@newtech.com.pl
+48 32 237 61 98 w. 117
rw@newtech.com.pl
Description
Inductive distance sensors
  • 2 … 5 mm
  • voltage output
  • connector M12
  • -10 … 70 °C
  • IP 67
Technical data
General data
Mounting type Flush
Measuring distance Sd 2 … 5 mm
Resolution < 0.005 mm (stat.)
< 0.01 mm (dynam.)
Repeat accuracy 0.015 mm
Linearity error ± 350 µm
Temperature drift ± 2 % (Full Scale: 0 ... +60 °C)
± 4 % (Full Scale: -10 ... +70 °C)
Electrical data
Response time (factory characteristic) < 2 ms
Voltage supply range +Vs 12 … 36 VDC
Current consumption max. (no load) 10 mA
Output circuit Voltage output
Output signal 1 ... 9 VDC
Load resistance > 4000 Ohm
Short circuit protection Yes
Reverse polarity protection Yes
Mechanical data
Type Cylindrical threaded
Housing material Brass nickel plated
Dimension 18 mm
Housing length 60 mm
Connection types Connector M12
Tightening torque max. 40 Nm
Ambient conditions
Operating temperature -10 … +70 °C
Protection class IP 67
