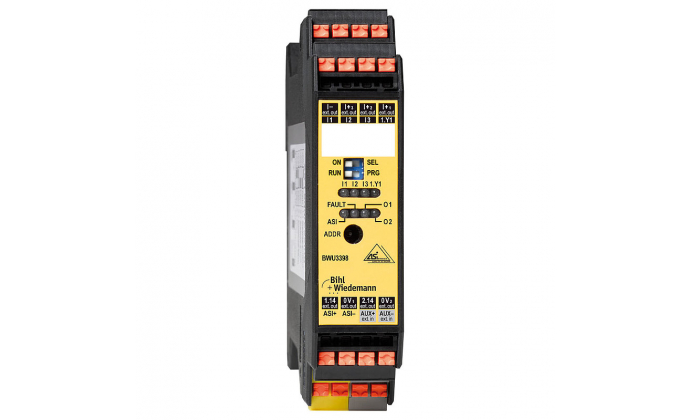

BWU3398 - ASi Safety Output Module, IP20, 1SO/3I/1EDM
PRODUCENT CODE: BWU3398
CATEGORY: ASi Safety At Work - Safety Functionality - ASi Safety Modules - Safety I/O Modules: Output modules
Producer: Bihl + Wiedemann GmbH
The product is in categories:
14-21 days
The product is available on request
At the moment, the product is not available in our warehouse.
After placing the order, we will notify you of the expected delivery date of the product.
At the moment, the product is not available in our warehouse.
After placing the order, we will notify you of the expected delivery date of the product.
Fast shipping
Free delivery
from 1000 PLN (net)
Free delivery
from 1000 PLN (net)
Do you have questions about the product?
Ask an experienced consultant:
Ask an experienced consultant:
Description
ASi Safety Output Module in IP20, 22,5 mm x 114 mm, with 4 x COMBICON connections, 1 release circuit (2 x electronic safe outputs, max. 3 A per output), augmented reliability, 3 digital inputs and 1 EDM, input voltage/sensor supply out of AUX, output voltage/actuator supply out of AUX, periphery connection via clamps, without limitation of connector cable length (loop resistance 150 Ohm), ASi connection via clamps, 1 single address + 2 AB addresses
Technical data
| Type | IP20, 22,5 mm x 114 mm, 4 x 4 contacts, Safety |
| Housing | 4 x COMBICON |
| Protection rating | IP20 |
| Inputs digital, EDM | 1 EDM + 3 standard |
| Outputs Safety, SIL 3, cat. 4 | 1 release circuit, 2 x electronic safe outputs, max. 3 A, augmented reliability |
| Input voltage (sensor supply) | out of AUX |
| Output voltage (actuator supply) | out of AUX |
| Length of connector cable | unlimited |
| Connection | push in terminals |
| ASi connection | clamps |
| ASi address | 1 Single address + 2 AB addresses |
(
