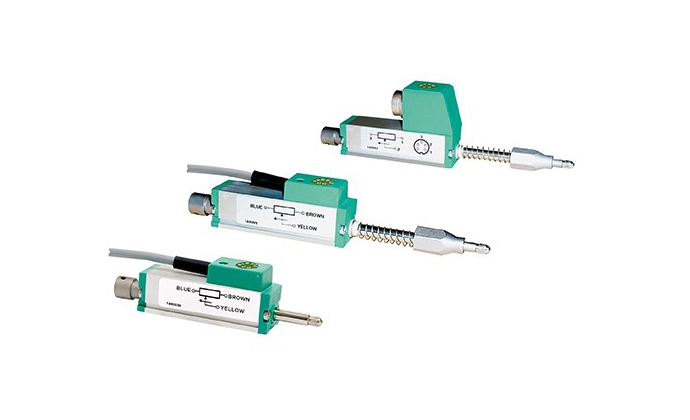

Potentiometric Displacement Sensor Burster 8712-10, 10 mm
These displacement sensors are potentiometric displacement sensors used for direct measurement, testing and monitoring of mechanical displacements. The spring-loaded control rod eliminates the need of coupling with the measurement object.
A prerequisite for a very long life duration of the devices is a parallel alignment of the motion direction of the measurement object and the rod.
Areas of application are:
Displacement on
- Electromagnets
- Hydraulic cylinders
- Switches and buttons
Measurements of
- Deformation
- Bending
- Press-fits
- Feed strokes
Due to the technology employed in potentiometric displacement sensors, they always operate with a sliding contact system. Special processes are applied to give the resistance tracks low friction, low tendency to stick/slip, resistance to abrasion and a long-term stability.
The rods are guided in long-life, low friction sliding bearings with close tolerances which provide high durability and measuring quality. The pre-stressed spring presses the sensor tip against the measurement object. This spring is double-guided and disappears in the probe head, if the rod is in its end position.
The probe tip consists of a ball made of stainless steel. The bore at rod end serves for coupling retraction units. The rod is protected against twist for measurement ranges up to 50 mm. The probe tip (hexagonal) must not be turned by any tool, otherwise its anti-twist protection will be destroyed.
FEATURES - Potentiometric Displacement Sensor Burster 8712-10
Measurement ranges: 0 ... 10 mm to 0 ... 150 mm
Non-linearity up to 0.05 % F.S.
Durability 108 operations
Resolution 0.01 mm
Follower roll on request
Optional with internal spring
PRODUCT DATA - Displacement Sensors 8712, 8713
| Model | 8712, 8713 |
| Principle | Potentiometric |
| Measuring range | 0 … 10 mm |
| 0 … 25 mm | |
| 0 … 50 mm | |
| 0 … 100 mm | |
| 0 … 125 mm | |
| 0 … 150 mm |
| Signal output | Depending on excitation voltage |
| Protection class | IP40 |
| Range of operating temperature | -30 ... +100 °C |
| Supply voltage | Depending on measuring range |
| Electrical connection | 8712 |
| 5 pins plug connection | |
| 8713 | |
| Integrated connection cable 1 m | |
| Integrated connection cable 3 m | |
| Integrated connection cable 5 m |
| Return spring | Yes |
| Yes, internal |
| Specific characteristics | Service live: 108 movements |
| Resolution 0.01 mm | |
| Follower roll on request | |
| Optional with internal spring |
| Producer | Burster |
