![OES 18 FKR 8000 N3-B4](/files/products/di-soric/oes-18-fkr-8000-n3-b4/oes-18-fkr-8000-n3-b4.png)

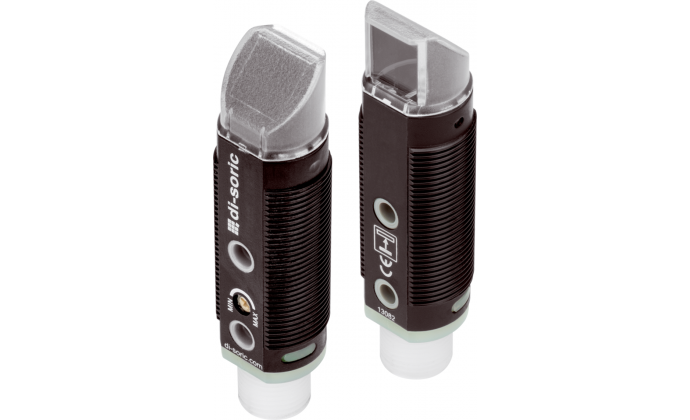

OES 18 FKR 8000 N3-B4
PRODUCENT CODE: 207919
CATEGORY: O-81 Laser
Producer: di-soric
The product is in categories:
- O-81 Laser
- O-Q10 Miniature
- Diffuse reflective sensors
- Retro reflective sensors
- Through-beam sensors
- Diffuse reflective sensors
- Background suppression sensors
- Retro reflective sensors
- Through-beam sensors
- Diffuse reflective sensors
- Background suppression sensors
- Retro reflective sensors
- Through-beam sensors
- Diffuse reflective sensors
- Retro reflective sensors
- Background suppression sensors
- Retro reflective sensors
- Diffuse reflective sensors
- Background suppression sensors
- Retro reflective sensors
- O-M8
- Diffuse reflective sensors
- Diffuse reflective sensors
- Retro reflective sensors
- Through-beam sensors
- Background suppression sensors
- Diffuse reflective sensors
261.45 PLN
(net)
7-14 days
The product is available on request
At the moment, the product is not available in our warehouse.
After placing the order, we will notify you of the expected delivery date of the product.
At the moment, the product is not available in our warehouse.
After placing the order, we will notify you of the expected delivery date of the product.
Fast shipping
Free delivery
from 1000 PLN (net)
Free delivery
from 1000 PLN (net)
Do you have questions about the product?
Ask an experienced consultant:
Ask an experienced consultant:
Description
Through-beam sensors consist of transmitter and receiver, each of which are arranged in its own housing. Transmitter and receiver are mounted opposite one another. Nontransparent, shiny and reflective objects can be reliably recognized. Through-beam sensors make long ranges possible, with the highest degree of functional safety. Cleaning and maintenance cycles can be reduced to a minimum through the use of through-beam sensors.
- Angled optics
- Universal mounting options
- Low installation depth
- Sensitivity is adjustable
- LED switching status display
- Plastic housing
Technical data
Electrical features | |
Service voltage | 10 … 30 V DC |
No-load current (max.) | 30 mA |
Mechanical features | |
Thread | M18 x 1 |
Housing length | 67.5 mm |
Housing material | Plastic (ABS) |
Material | PMMA (Window) |
Certifications, approvals | |
Protection class | III, operation on protective low voltage |
General features | |
Operating principle | Through-beam sensor |
Evaluation | digital |
Design | Thread, Angled optics |
Consisting of | Transmitter and Receiver |
Output, input, interface | |
Switching output | npn, 100 mA, NO/NC |
Optical data | |
Light source | LED |
Color | Infrared |
Wavelength | 880 nm |
Modulation | Clocked |
Ambient light immunity | 3 kLx Clocked light, 10 kLx Sunlight |
Detection range, measuring range, tolerance limits | |
Range | 0 … 8000 mm |
Display, operation | |
Sensitivity adjustment | Potentiometer |
Time behavior | |
Switching frequency | 333 Hz |
Response time | 1.5 ms |
Release time | 1.5 ms |
Ambient conditions | |
Ambient temperature during operation | -25 … +55 °C |
Protection type | IP 67 |
Electrical connection | |
Connection | Connector, M12, 4-pin |
