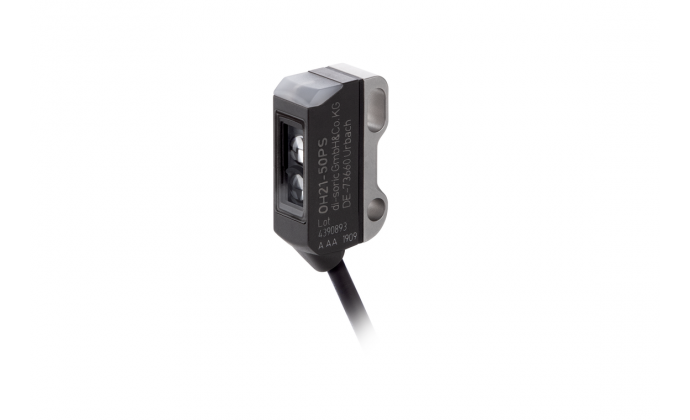

OH21-80NS-0.3T3
PRODUCENT CODE: 212980
CATEGORY: O-81 Laser
Producer: di-soric
The product is in categories:
- O-81 Laser
- O-Q10 Miniature
- Diffuse reflective sensors
- Retro reflective sensors
- Through-beam sensors
- Diffuse reflective sensors
- Background suppression sensors
- Retro reflective sensors
- Through-beam sensors
- Diffuse reflective sensors
- Background suppression sensors
- Retro reflective sensors
- Through-beam sensors
- Diffuse reflective sensors
- Retro reflective sensors
- Background suppression sensors
- Retro reflective sensors
- Diffuse reflective sensors
- Background suppression sensors
- Retro reflective sensors
- O-M8
- Diffuse reflective sensors
- Diffuse reflective sensors
- Retro reflective sensors
- Through-beam sensors
- Background suppression sensors
- Diffuse reflective sensors
449.23 PLN
(net)
7-14 days
The product is available on request
At the moment, the product is not available in our warehouse.
After placing the order, we will notify you of the expected delivery date of the product.
At the moment, the product is not available in our warehouse.
After placing the order, we will notify you of the expected delivery date of the product.
Fast shipping
Free delivery
from 1000 PLN (net)
Free delivery
from 1000 PLN (net)
Do you have questions about the product?
Ask an experienced consultant:
Ask an experienced consultant:
Description
Background suppression sensors are efficient sensors for detecting objects in which transmitters and receivers are located in one housing. They evaluate the position of objects. Objects that are located behind the set switching position are hidden. Sensors with background suppression make reliable detection results possible with varying objects.
- Miniature design
- Mounting element made of metal
- High switching frequency
- Ideal background suppression
- Scanning range preset
Technical data
| Electrical features | |
| Service voltage | 10 … 30 V DC |
| No-load current (max.) | 20 mA |
| Inverse polarity protection | Yes |
| Mechanical features | |
| Housing dimensions | 28.1 x 8.1 x 14.4 mm |
| Housing length | 8.1 mm |
| Housing height | 28.1 mm |
| Housing width | 14.4 mm |
| Housing material | Stainless steel / Plastic |
| Material of cable | PVC |
| Material | Plastic (Window / optics) |
| Weight | 21 g |
| Certifications, approvals | |
| Protection class | III, operation on protective low voltage |
| General features | |
| Operating principle | Diffuse sensor with background suppression |
| Evaluation | digital |
| Design | Cuboid design |
| Output, input, interface | |
| Switching output | npn, 100 mA, NO |
| Voltage drop (max.) | 2.5 V |
| Optical data | |
| Light source | LED (Clocked) |
| Color | red |
| Wavelength | 633 nm |
| Background suppression | Yes |
| Light spot size | > Ø 4 mm |
| Detection range, measuring range, tolerance limits | |
| Scanning range | 1 … 80 mm |
| Standardized measuring plate | 200 x 200 mm (white) |
| Display, operation | |
| Sensitivity adjustment | no setting elements |
| Display | LED Green - Status, yellow - Switching output |
| Time behavior | |
| Switching frequency | 1000 Hz |
| Ambient conditions | |
| Ambient temperature during operation | -25 … +60 °C |
| Protection type | IP 65 / IP 67 |
| Electrical connection | |
| Connection | Pigtail, 0.3 m, M8, 3-pin |
| Accessories | |
| Connection cable | TK … |
(
