Description

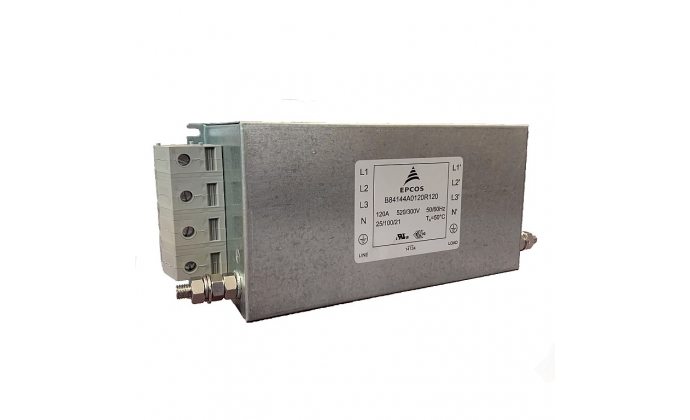

B84144A0120R120 Power Line Filter
- Power line filters for 3-phase systems with neutral conductor.
- Rated voltage VR: 300/520 V AC
- Rated current IR: 8 A to 200 A
Construction
- 4-line filters
- Metal case
Features
- Easy to install
- Space-saving design
- Optimized for long motor cables
- ENEC, UL and cUL approval
Typical applications
- Frequency converters for motor drives, e.g.: elevators, pumps, conveyor systems, HVAC systems (heating, ventilation and air conditioning)
- Power supplies
- Industrial applications
B84144A0120R120 Filtr sieci energetycznej EPCOS
| Manufacturer: | EPCOS / TDK |
| Product Category: | Power Line Filters |
| Filter Type: | 3-Phase EMI/EMC Filter |
| Voltage Rating: | 300 VAC, 520 VAC |
| Current Rating: | 120 A |
| Mounting Style: | Chassis Mount |
| Termination Style: | Terminal Block |
| Leakage Current: | 13 mA |
| Approvals: | UL, CSA, IEC/EN |
| Series: | B84144A
|
| Packaging: | Bulk |
| Operating Frequency: | 50 Hz, 60 Hz |
| Compliance: | cULus, ENEC |
| Unit Weight: | 10,030 kg |
