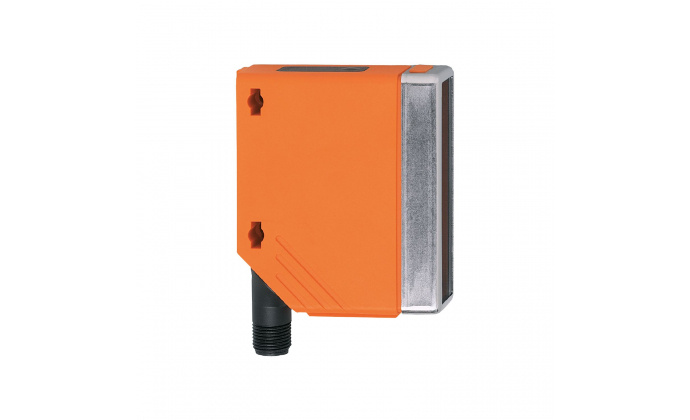

O4H201 - Diffuse reflection sensor with background suppression

O4H201 - Diffuse reflection sensor with background suppression

PRODUCENT CODE: O4H201
CATEGORY: Rectangular design O4 with very long range
Producer: ifm electronic
677.10 PLN
(net)
7-14 days
The product is available on request
At the moment, the product is not available in our warehouse.
After placing the order, we will notify you of the expected delivery date of the product.
Fast shipping
Free delivery
from 1000 PLN (net)
Do you have questions about the product?
Ask an experienced consultant:
+48 32 237 61 98 w. 101
bn@newtech.com.pl
Description
O4H-DPKG/US100
  • Very long range
  • Precise background suppression
  • Intuitive setting of the sensitivity via potentiometer
  • Robust housing for use in harsh industrial environments
  • Excellent price/performance ratio
Technical data
Product characteristics
Type of light red light
Housing rectangular
Application
Special feature Background suppression
Function principle Diffuse reflection sensor
Electrical data
Operating voltage [V] 10...36 DC; ("supply class 2" to cULus)
Current consumption [mA] 25
Protection class II
Reverse polarity protection yes
Type of light red light
Wave length [nm] 624
Outputs
Electrical design PNP
Output function dark-on mode
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 200
Switching frequency DC [Hz] 1000
Short-circuit protection yes
Type of short-circuit protection pulsed
Overload protection yes
Detection zone
Range [mm] 100...2000; (white paper 200 x 200 mm 90% remission)
Range on white object (90 % remission) [mm] 100...2000
Range on grey object (18 % remission) [mm] 100...1100
Range on black object (6 % remission) [mm] 100...700
Range adjustable yes
Max. light spot diameter [mm] 100
Light spot dimensions refer to at maximum range
Background suppression available yes
Operating conditions
Ambient temperature [°C] -25...60
Protection IP 65
Tests / approvals
EMC
EN 60947-5-2
MTTF [years] 326
Mechanical data
Weight [g] 121.5
Housing rectangular
Dimensions [mm] 74.4 x 27 x 63.8
Materials housing: PA; bezel: stainless steel; operator interface: TPE / PC
Lens material
PMMA
Lens alignment side lens
Displays / operating elements
Display
switching status 1 x LED, yellow
Operating elements
potentiometer
Remarks
Pack quantity 1 pcs.
Electrical connection
Connection Connector: 1 x M12; coding: A
accuracy graph
x: distance sensor/object [mm]
y: min. distance object/background [mm]
1 = object black (6 % remission) , background white (90 % remission)
2 = object grey (18 % remission) , background white (90 % remission)
3 = object white (90 % remission) , background white (90 % remission)
