MMR10 12 R5K W15% L2% Linear Sensor
At the moment, the product is not available in our warehouse.
After placing the order, we will notify you of the expected delivery date of the product.
Free delivery
from 1000 PLN (net)
Ask an experienced consultant:
MMR10 12 R5K W15% L2% Potentiometric Linear Transducer
The series MMR10 with spring return is used in applications with very confined space, which require a miniaturized displacement sensor with long lifespan, high accuracy and guided push rod on both sides.
In the displacement sensor series MM(R)10 the mechanical detection of linear movement is done by a rear and front guided push rod. The displacement sensor can be used both as a probe and with a guided push rod. The internal or external spring return opens up additional applications. The linear potentiometer MM(R)10-15 with soldering pins is designed for direct integration on printed circuit boards. Customization on the cable (length, finishing with plug) or on the push rod (length, thread, flat ...) are available on request.

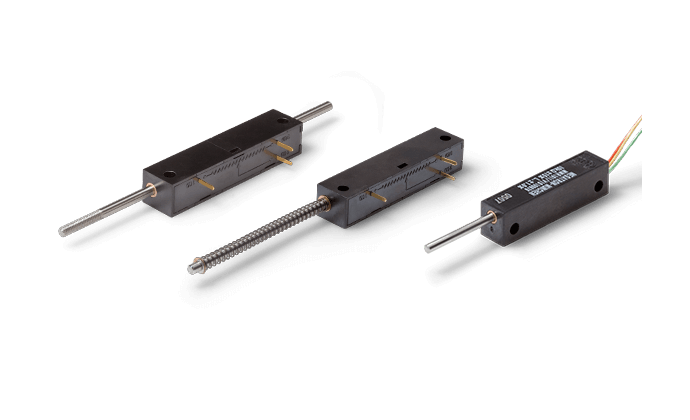

MMR10 12 R5K W15% L2% Czujnik liniowy Megatron
Technical data
| Effective electrical travel | 12,7 ±0,5 mm |
| Sensor Technology | Potentiometric |
| Protection Class | Up to IP54 (standard IP40) |
| Mechanical Detection Type | Front and rear side rod with/without spring return |
| Electrical Outlet Type | Solder contacts, Strands |
| Mounting | Screw Mounting / Bore Holes |
| Actuating speed | < 2 m/s |
| Resolution | Analogue stepless |
| Ind. linearity (best) | ±1% … ±2% (dep. on option) |
| Min. operating temperature | -30 °C |
| Max. operating temperature | +105 °C |
| Supply voltage | Potentiometric |
| Electr. output signal | (voltage - potentiometric) |
| Minimum overall length | Small (< 15 cm) |
