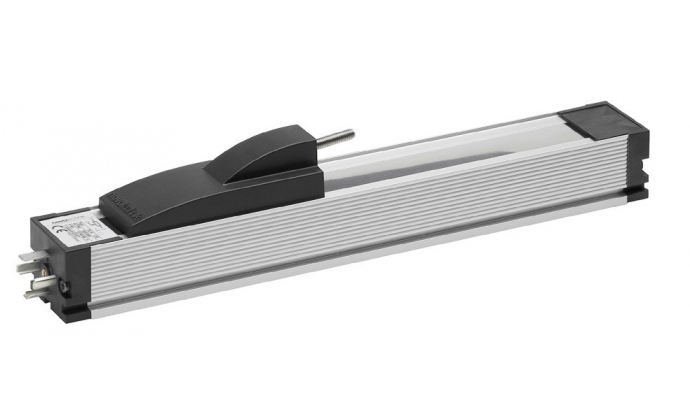

TLH 100 (025304)
PRODUCENT CODE: -
CATEGORY:
Producer: Novotechnik
The product is available on request
At the moment, the product is not available in our warehouse.
After placing the order, we will notify you of the expected delivery date of the product.
At the moment, the product is not available in our warehouse.
After placing the order, we will notify you of the expected delivery date of the product.
Fast shipping
Free delivery
from 1000 PLN (net)
Free delivery
from 1000 PLN (net)
Do you have questions about the product?
Ask an experienced consultant:
Ask an experienced consultant:
Description
TLH 100 (025304) Czujnik położenia liniowego
Special features
• rodless design
• very high operating speed
• ball coupling avoids side loads
• long life >100 x 106 movements
• outstanding linearity - up to ±0.02 %
• high resolution – better than 0.01 mm
• real-time output
• connector to DIN 43650 (hydraulic connector)
• protection class IP 54 - mounted slider-side down
LH 100 (025304) Linear Position Sensor
Electrical Data
Defined electrical range, mm | 100 |
Electrical stroke, mm | 102 |
Nominal resistance, kΩ | 3 |
Resistance tolerance, ±% | 20 |
Independent linearity, ±% | 0.1 |
Repeatability, mm | 0.01 |
Recommended operating wiper current, μA | ≤ 1 |
Maximum wiper current (due to system malfunction), mA | 10 |
Maximum permissible applied voltage, V | 42 |
Effective temperature coefficient of the output-to-applied voltage ratio, ppm/K | typical 5 |
Insulation resistance (500 VDC), MΩ | ≥ 10 |
Dielectric strength (500 VAC, 50 Hz), μA | ≤ 100 |
Mechanical Data
Body length (dimension A), ±2 mm | 250 |
Mechanical stroke (dimension B), ±2 mm | 108 |
Total weight, g | 440 |
Weight ofsliding part, g | 45 |
Permitted movement of ball coupling | ±1° angular offset, ±1.5 mm parallel offset |
Operating force, N | horizontal - ≤ 0.4; vertical - ≤ 1.1 |
Environmental Data
Temperature range | -30 ... +100 °C |
Vibration | 5...2000 Hz |
Amax = 0.75 mm | |
amax= 20 g | |
Shock | 50 g |
11 ms | |
Life | > 100 x 10*6 movem. |
Operating speed | 10 m/s max. |
Operational acceleration | 200 (20 g) m/s*2 max. |
Protection class | IP40 (DIN EN 60529), IP54 (DIN EN 60529) mounted actuator side down |
Producer | Novotechnik |
