LX101PZ
At the moment, the product is not available in our warehouse.
After placing the order, we will notify you of the expected delivery date of the product.
Free delivery
from 1000 PLN (net)
Ask an experienced consultant:

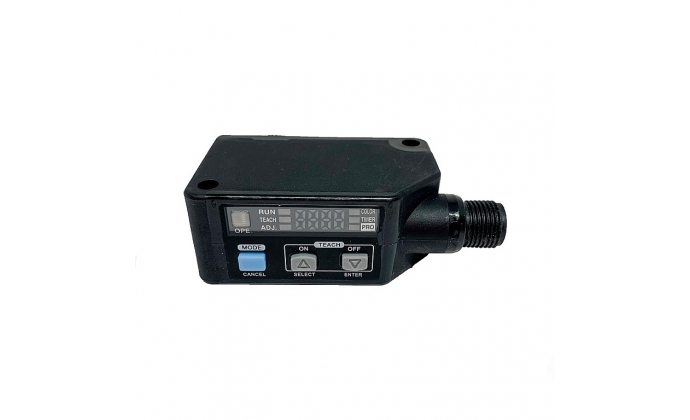

Description LX101PZ – Panasonic Digital Mark Sensor
- High precision coaxial reflective optical system - SUNX’s unique coaxial reflective optics technology ensures very accurate sensing. The unit is made with a scratchproof glass lens. Panasonic Industrial Devices SUNX's unique coaxial reflective optics technology ensures very accurate sensing. Sensor LX101PZ is made with a scratchproof glass lens.
- R•G•B light emitting elements all in one - to detect any marking, this unit is equipped with red, green and blue LED light emitting elements all in one. To detect any marking, Panasonic sensor LX-101-P-Z is equipped with red, green and blue LED lig.
- 4-digit digital display - the 4-digit digital display enables numerical sensing control and minute settings.
- Operation panel - LX101PZ sensor has 3 large buttons that click into position making operation easy.
- Protection IP67 - washing the machines and production line with water will not affect the sensor thanks to its waterproof construction.
*Specifications and design of the products are subject to change without notice for the product improvement.
LX-101-P-Z – PANASONIC Digital Mark Sensor
Technical Data
| Product Number | LX-101-P-Z |
| Part Number | LX-101-P-Z |
| Regulatory compliance | EMC Directive, RoHS Directive |
| Sensing range | 10 ± 3 mm 0.394 ± 0.118 in |
| Spot size | 1 x 5 mm 0.039 x 0.197 in (at 10 mm 0.394 in setting distance) |
| Supply voltage | 12 to 24 V DC ± 10 % Ripple P-P 10 % or less |
| Current consumption | Normal mode: 750 mW or less(Current consumption 30 mA or less at 24 V supply voltage) |
| Output 1(OUT) | PNP open-collector transistor |
| Output 1:Short-circuit protection | Incorporated |
| Output 1:Output operation | Mark mode: Light-ON / Dark-ON (Auto-setting on teaching) |
| Output 2(OUT) | - |
| Output 2:Short-circuit protection | - |
| Output 2:Output operation | - |
| Response time | Mark mode: 45 micro s or less |
| Teaching input | PNP non-contact input |
| Digital display | 4-digit red LED display |
| Sensitivity setting | Mark mode: 2-level teaching / Full-auto teaching |
| Fine sensitivity adjustment function | Incorporated |
| Timer function | Incorporated with variable ON-delay / OFF-delay timer, |
| Protection | IP67 (IEC) |
| Ambient temperature | -10 to +55 ℃ +14 to +131 ℉ (No dew condensation or icing allowed), |
| Ambient humidity | 35 to 85 % RH, Storage: 35 to 85 % RH |
| Ambient illuminance | Incandescent light: 3,000 lx or less at the light-receiving face |
| Voltage withstandability | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
| Vibration resistance | 10 to 500 Hz frequency, 3.0 mm 0.118 in double amplitude (max. 20 G) in X, Y and Z directions for two hours each |
| Shock resistance | 500 m/s2 acceleration (50 G approx.) in X, Y and Z directionsthree times each |
| Emitting element | Combined Red / Green / Blue LEDs (Peak emission wavelength: 640 nm 0.025 mil / 525 nm 0.021 mil / 470 nm 0.019 mil) |
| Material | Enclosure: PBT |
| Cable | (Note) Mating cable is not supplied with the plug-in connector type. Please order it separately. |
| Cable extension | Extension up to total 100 m 328.084 ft is possible with 0.3 mm2, or more, cable. |
| Weight | Net weight: 55 g approx. |
| Accessory | M4 (length 30 mm 1.181 in) screw with washers: 2 pcs. |
