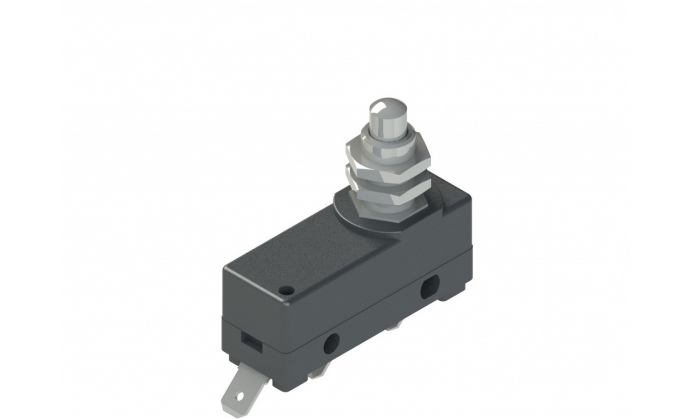

MF 09 switch
PRODUCENT CODE: -
CATEGORY:
Producer: Pizzato
The product is available on request
At the moment, the product is not available in our warehouse.
After placing the order, we will notify you of the expected delivery date of the product.
At the moment, the product is not available in our warehouse.
After placing the order, we will notify you of the expected delivery date of the product.
Fast shipping
Free delivery
from 1000 PLN (net)
Free delivery
from 1000 PLN (net)
Do you have questions about the product?
Ask an experienced consultant:
Ask an experienced consultant:
Description
Technical Data for MS - MF series microswitches Pizzato
(incl. MF 09 Microswitch with threaded plunger)
Housing
| Material | Housing made of glass fibre reinforced technopolymer, self-extinguishing and shockproof |
| Protection degree acc. to EN 60529 | IP00 (without terminal cover), IP20 (with terminal covers VF C01, VF C03), IP40 (with terminal cover VF C02) |
General data
| Ambient temperature | -25°C ... +85°C |
| Max. operating frequency | 3600 operating cycles/hour |
| Mechanical endurance | 10 million operating cycles |
Electrical data
| Thermal current (Ith) | 16 A |
| Rated insulation voltage (Ui ) | 250 Vac 300 Vdc |
| Rated impulse withstand voltage (Uimp) | 4 kV |
| Conditional short circuit current | 1000 A acc. to EN 60947-5-1 |
| Protection against short circuits | type gG fuse 16 A 250 V |
| Pollution degree | 3 |
| Dielectric strength | 2000 V~ (between terminals and other metal parts to ground) |
| In compliance with standards | EN 60947-1, EN 60947-5-1, fundamental requirements of the Low Voltage Directive 2014/35/EU |
