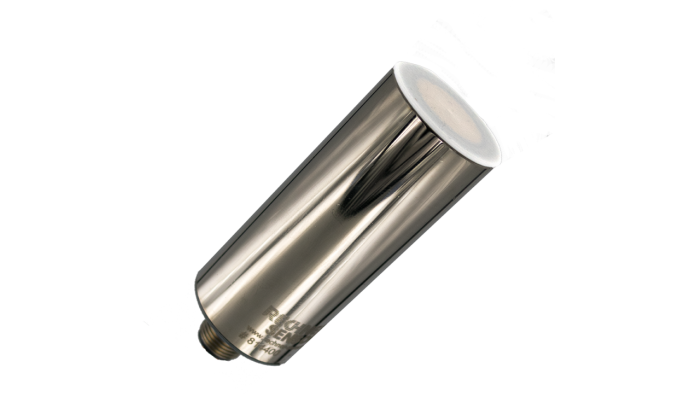

KAS-80-30-A-Y5 - capacitive sensor RECHNER

KAS-80-30-A-Y5 - capacitive sensor RECHNER

PRODUCENT CODE: -
CATEGORY:
Producer: Rechner
The product is available on request
At the moment, the product is not available in our warehouse.
After placing the order, we will notify you of the expected delivery date of the product.
Fast shipping
Free delivery
from 1000 PLN (net)
Do you have questions about the product?
Ask an experienced consultant:
+48 32 237 61 98
newtech@newtech.com.pl
Description

Capacitive sensor KAS-80-30-A-Y5

  • 30mm diameter barrel;
  • Housing material: brass;
  • Flush mountable;
  • Operating distance 20 mm;
  • Sensing distance 0.5...30 mm adjustable;
  • With metal flange connector M 12 x 1.

Capacitive sensor KAS-80-30-A-Y5 - Technical data

Operating distance Sn [mm], flush mounting 20, yes
Operating distance min./max. [mm] adjustable 0.5...30
Electrical version 4-pin DC
Output antivalent
Type PNP KAS-80-30-A-Y5
Art.-No. 814 400
Connection diagram No. 6
Operating voltage (UB) 10...35 V DC
Output current max. (Ie) 2 x 250 mA
Voltage drop max. (Ud) < 2.0 V
Permitted residual ripple max. 0,1
No-load current (Io) typ. 15 mA
Frequency of operating cycles max 200 Hz
Permitted ambient temperature -25...+70°C
LED-display green/yellow
Protective circuit built-in
Degree of protection IEC 529 IP 67
Connection metal flange connector M12 x 1
Housing material brass
Active surface PTFE
Lid PA
Producer Rechner
