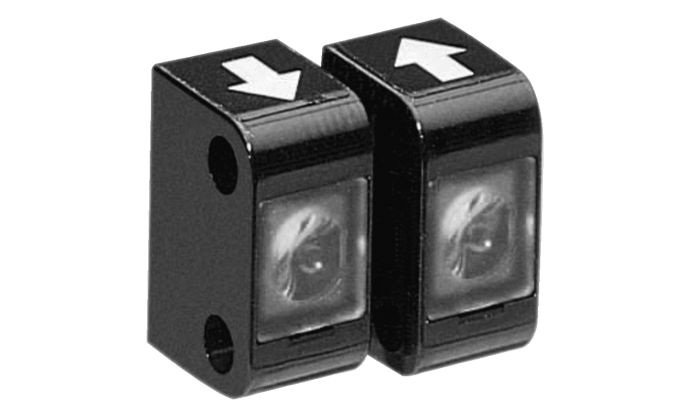

SS?SE130-S33 Through-beam photoelectric sensor
PRODUCENT CODE: -
CATEGORY:
Producer: Sick
The product is available on request
At the moment, the product is not available in our warehouse.
After placing the order, we will notify you of the expected delivery date of the product.
At the moment, the product is not available in our warehouse.
After placing the order, we will notify you of the expected delivery date of the product.
Fast shipping
Free delivery
from 1000 PLN (net)
Free delivery
from 1000 PLN (net)
Do you have questions about the product?
Ask an experienced consultant:
Ask an experienced consultant:
Description
SS130-S33/SE130-S33 Fotoprzekaźnik barierowy
Features
| Sensor/ detection principle | Through-beam photoelectric sensor |
| Dimensions (W x H x D) | 17 mm |
| Housing design (light emission) | Rectangular |
| Type of light | Visible red light |
| Light source | LED |
Mechanics/electronics
| Supply voltage | 10 V DC ... 30 V DC |
| Power consumption | 35 mA 1) |
| Switching mode | Light/dark switching |
| Response time | ≤ 0.5 ms 2) |
| Connection type | Cable, 2 m 3) |
| Cable material | PVC |
| Conductor cross-section | 0.8 mm² |
| Housing material | Plastic, ABS |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP66 |
| Ambient operating temperature | –25 °C ... +55 °C |
| Ambient storage temperature | –40 °C ... +70 °C |
| Country of Origin | Japan |
1) Without load.
2) Signal transit time with resistive load.
3) Do not bend below 0 °C
