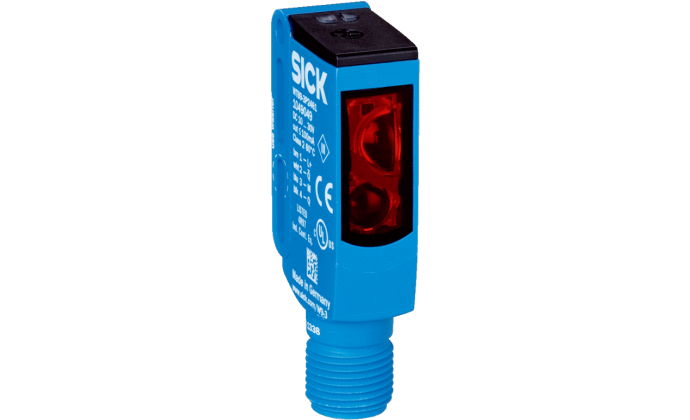

WTB9-3P2411
At the moment, the product is not available in our warehouse.
After placing the order, we will notify you of the expected delivery date of the product.
Free delivery
from 1000 PLN (net)
Ask an experienced consultant:
WTB9-3P2411- Czujnik Fotoelektryczny - Dane Techniczne
WTB9-3P2411 Features
| Device type | Photoelectric sensors |
| Sensor/ detection principle | Photoelectric proximity sensor, Background suppression |
| Dimensions (W x H x D) | 12.2 mm x 52.2 mm x 23.6 mm |
| Housing design (light emission) | Rectangular |
| Mounting hole | M3 |
| Sensing range max. | 20 mm ... 500 mm 1) |
| Sensing range | 20 mm ... 250 mm 2) |
| Type of light | Infrared light |
| Light source | LED 3) |
| Light spot size (distance) | Ø 20 mm (250 mm) |
| Wave length | 850 nm |
| Adjustment | Potentiometer, 5 turns |
1) Object with 90 % reflectance (referred to standard white, DIN 5033).
2) Object with 6 % reflectance (referred to standard white, DIN 5033).
3) Average service life: 100,000 h at TU = +25 °C.
Mechanics/electronics
| Supply voltage | 10 V DC ... 30 V DC 1) |
| Ripple | < 5 Vpp 2) |
| Current consumption | 30 mA 3) |
| Switching output | PNP 4) |
| Output function | Complementary |
| Switching mode | Light/dark switching 4) |
| Output current Imax. | ≤ 100 mA 5) |
| Response time | < 0.5 ms 6) |
| Switching frequency | 1,000 Hz 7) |
| Connection type | Male connector M12, 4-pin |
| Circuit protection | A 8) B 9) C 10) |
| Protection class | III |
| Weight | 13 g |
| Housing material | Plastic, VISTAL® |
| Optics material | Plastic, PMMA |
| Enclosure rating | IP66 IP67 IP69K |
| Ambient operating temperature | –40 °C ... +60 °C |
| Ambient temperature, storage | –40 °C ... +75 °C |
| UL File No. | NRKH.E181493 |
1) Limit values when operated in short-circuit protected network: max. 8 A.
2) May not exceed or fall below Uv tolerances.
3) Without load.
4) Q = light switching.
5) At and above Tu 50 °C, a max. load current of Imax. = 50 mA is permitted.
6) Signal transit time with resistive load.
7) With light/dark ratio 1:1.
8) A = VS connections reverse-polarity protected.
9) B = inputs and output reverse-polarity protected.
10) C = interference suppression.
